EQUIPMENT
updated on
11.02.2023
NEW (from 07.02.2023):

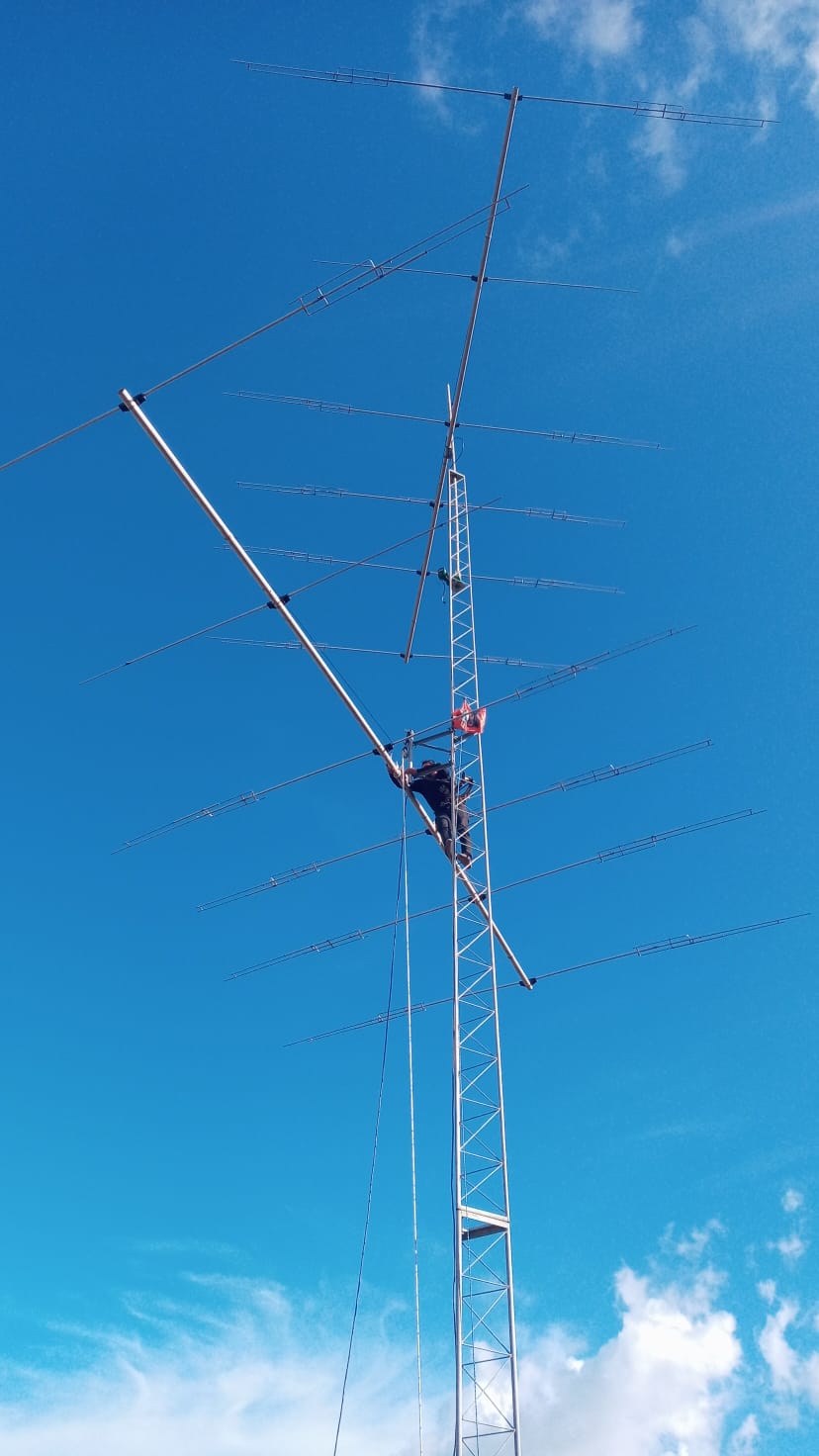

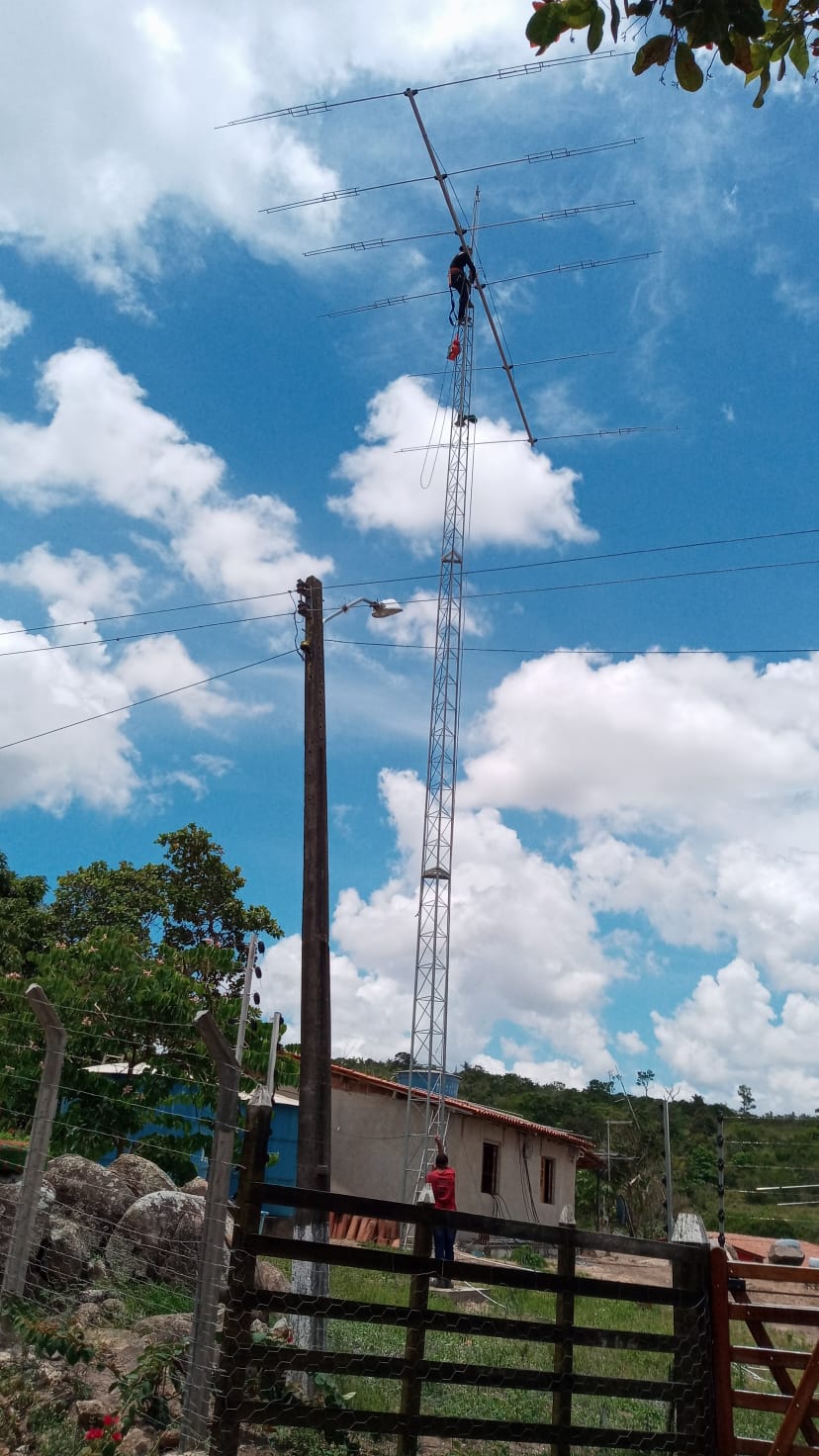

Tower selfstanding 60' with
2 KLM KT34XA (one rotating and one fix to EU)
Tower 46' with monobander
10m 7 elements LFA

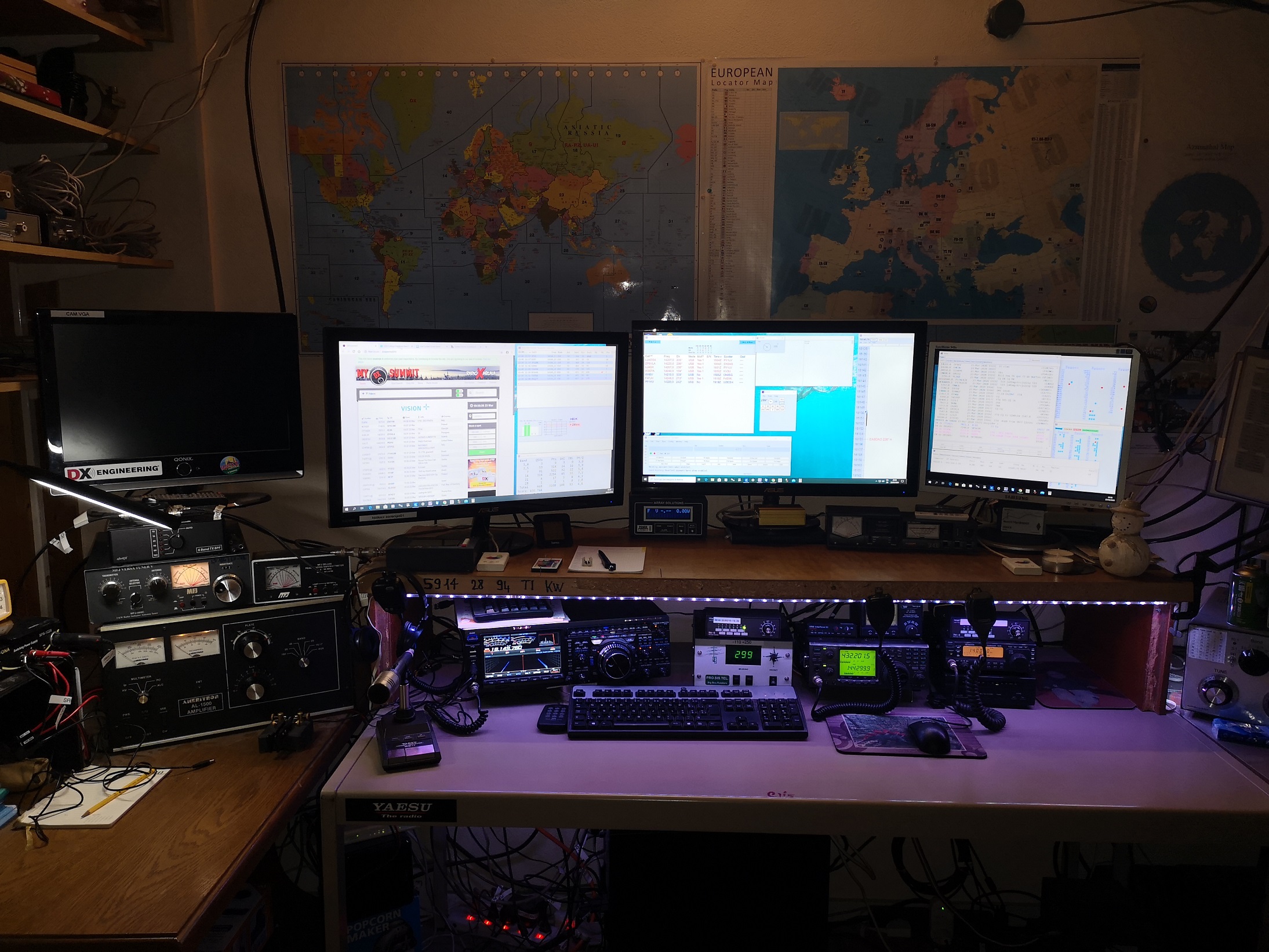

SHACK (new from 22.08.2022)
Station 1 - Runner #1
Yaesu FTdx101D
Alpha 91b
MFJ Tuner 989C 3KW
5B4AGN Tx Bandpass Filter
PowerMaster II
PC i7 processor (rate 5910) and 2x27 LCD
Station 2 - Multi or Runner #2
Icom IC-7300
Ameritron AL1500
OM-6BPF Tx Bandpass Filter
PowerMaster II
PC i5 processor and 24 LCD
Station VHF
Icom IC-9700
Spare PA: Alpha 76a
LP-2500 Low Pass Filter (4KW)
Hamplus Memory Band Decoder and Remote Controller
Switches
SSB Switch AS2004 for VHF and UP
Mediaserver 12TB
Old setup (up to 20.08.2022):
Old shack (up to 20.08.2022):
Antenna park:
Structure
Hamplus AS-84E Antenna Switch
Prosistel PST61D rotator for pneumatic mast Fireco 12m
Prosistel PST51 rotator for 18m Tower
Flammex Pull Rotator for 12m Tower
HF-6M-4M
2x KLM KT34XA tribander 6 elements
SP7GXP GP5SP modified for 60m (no 20m)
SP7GXP 7el 7band Beam (40m to 10m)
Cushcraft MA6VA vertical 6m to 20m
EAntennas 9 elements 6m/4m OWA
Kelemen inv.V 40m-80m
Dipole 60m 1/2 wave homemade
Magnetic Loop 60m for Beacon Rx Plot homemade
Ground Plane 30m monoband homemade
Ground Plane 20m monoband homemade
Ground Plane 17m monoband homemade
Ground Plane 12m monoband homemade
Vertical 80m monoband 1/4 wave
shortened homemade
EcoAntenne 2 el. 6m (hb9cv)
EAntennas 7 elements 6m LFA
Homemade 6 elements 6m
Kelemen inv.V 40m-80m-160m ssb tuned (installed on main contests)
(actually down)
Inverted L 160m monoband homemade 1/4 wave (actually down)
2M-70CM-23CM
Vertical Diamond X200
EAntennas 18 elements 432 LFA
EAntennas 11 elements 144 LFA
EAntennas 16 elements 144 LFA (actually down for
revision)
Flexa 2309 26 elements 1296
Homemade CXZ 21 elements 1296
Discone D-130
Coax Cables are mostly Messi & Paoloni Ultraflex
10 or SSB Ecoflex 10.
Monitors, 6m to 70cm are on RG213U or H155.
Antenna pictures
Station 2020 in HB9 (hb9ocr/hb2k)
Since 02.2020
BigIr with 80m coil
Old pictures until MID 2013...
(first version of station at S. Antonino)
Old stations in Sorengo
Station Base Equipment
(since 01.10.08 - picture Jan.10) up to
31.12.2010
station 1 + station 3
station 2 + station 4 (old picture, to be updated...)
Eight Pak Remote Controller
Eight Pak Remote Switch
STATIONS CONFIGURATION
|
Station 1 Main
(HF 20m+Warc)
|
Station 2
(HF 15m+80m, 6m, VHF)
|
|
Kenwood TS950SDX
(sold)
|
Icom IC-746
(sold)
|
|
Kenwood TL922 Power Amplifier 1KW(sold)
|
AEA LA-30E Power
Amplifier 1.2KW(sold)
|
|
MFJ 3KW Versa Tuner V(sold)
|
Amp AT-3000 3KW Tuner(sold) |
|
MFJ 434 Voice Keyer(sold)
|
not
yet |
|
Eight-Pak from Array Solutions(sold)
Ameritron RCS-4 for Beverages(sold)
|
Eight-Pak from Array Solutions for HF(sold)
RatPak from Array Solutions for 6m and Beverages(sold) |
|
LowPass Filter Drake
0-30 MHz on EightPak(sold)
|
LowPass Filter
TP 0-30 MHz on EightPak(sold) |
Kenwood SW-200(sold) |
TEAM SWR-1180R for 6m(sold)
Daiwa CN-101L for HF(sold) |
| |
CG SB2000 Radio Interface for digital modes(sold) |
|
Station 3
(HF 40m, 6m, VHF)
|
Station 4
(VHF, UHF)
|
|
Icom
IC-706mk2(sold)
|
Sommerkamp FT-726R(sold)
|
LDG AT-1000(sold) |
Alinco Amplifier 30W VHF(sold) |
| switchable on TS950SDX's Setup |
Mirage Amplifier 160W VHF(sold) |
CG SB2000 Radio Interface for digital modes(sold) |
Tono Amplifier 60W UHF(sold) |
| soon
Amplifier |
Mirage Amplifier 100W UHF(sold) |
| |
MFJ Microphone MFJ-299(sold) |
| |
Diamond SX400 for 2m(sold)
TEAM SWR HF2000 for 70cm |
|
Station 5
(HF 10m+160m) |
Station 6
(Mobile) and portables |
|
Kenwood TS850SAT
|
Icom IC-7000 with AT-7000(sold)
|
| soon
Amplifier |
Wouxon KG-UV2D |
| |
Motorola GP-380 |
| |
|
| |
|
| |
|
Antennas PARK
Yaesu G-800SDX rotor(sold)
Eight-Pak from WX0B Array Solutions (*)
(sold)
HF (*)
Cushcraft A4S
10m-15m-20m-40m(sold)
Tagra 3el. beam 10m-15m-20m(sold)
Vertical 40m monoband EcoAntenne - 30ft(sold)
Vertical 80m monoband EcoAntenne - soon Rotatable V-Dipole (60ft
wide)(sold)
Dipole 160m inverted V Kelemen - 115ft at 60ft(sold)
(Dipole 160m inverted V EcoAntenne - 84ft at 60ft) not in use(sold)
(Dipole 10-80m inverted V G5RV - 90ft at 50ft) not in use(sold)
Rotatable Dipole WARC 12-17-30m(sold)
6 Meters (*)
Yagi Homemade 6 elements for 6m
Vertical Diamond 2x 5/8 lamdba monoband 6 meter(sold)
VHF / UHF
Diamond X300 2m/70cm Vertical(sold)
Comet X300 2m/70cm Vertical(sold)
Cushcraft 25 el. Yagi UHF(sold)
Monitors
Vertical Maldol HVU-8, just 2.5m high, but works fine
70cm to 80m
Discone Receiver Antenna 20-1300 MHz
Mobile Station (HF, 6m, VHF, UHF):
Icom IC-7000 with AT-7000(sold)
MFJ Vertical Monoband 40m, 20m, 17m, 15m
Diamond Multiband 40/20/17/15/12/10/6/2/70
Diamond Dualband 2m/70cm(sold)
Pictures (2010 April)
Pictures (2009)
6m + HF Yagi + G5RV
80m vertical + 70cm yagi
6m vertical + VHF/UHF vertical
PCs on (W)LAN:(sold)
|
PC Contest |
Dual Core 2.4 GHz, 1GB RAM, 50GB, Windows 7.0, 19"
and 19"
interfaced with transceiver via N1MM and Ham Radio Deluxe at Station 1
|
|
PC Contest 2 |
Pentium 4, 2.5 GHz, 512MB RAM, 80GB, Windows
7.0, 19" and 19" at Station 2 and 4 |
|
PC Contest 3 |
Pentium 4, 1.7 GHz, 1.5GB RAM, 160GB, Windows Vista, 17" and
17" (another floor at station 3) - Digital Interface
|
|
PC Server |
Dual Core 2.5 GHz, 2 GB RAM, 5.3 TB (!!!!), Windows 7.0,
22" and 19"
as download from Internet, backup, multimedia library, website
main HAM soft: VQLog, Swisslog, N1MM, SDLog, CTLog, Media Center
|
| PC
Games |
Pentium 4, 1.7
GHz, 1 GB RAM, 160 GB, Windows XP |
|
PC Portable |
for portable contest and activations/dxpeditions Celeron
1.7 GHz |
see old equipment (click here)
